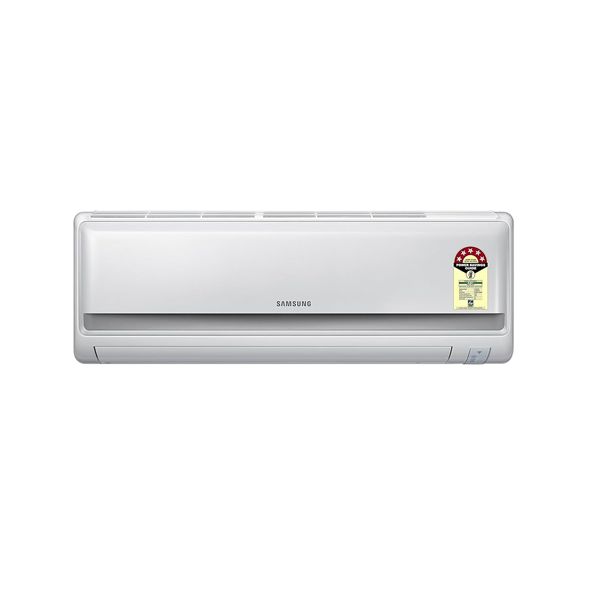

SAMSUNG A/C AR50F12D0XHNNA 1.0TON 3STAR INVERTER

Specifications

Overview

• Capacity  11942 Btu/hr
• Capacity (Cooling, kW)  3.50 kW
• EER (Cooling, W/W)  3.24 W/W
• Net Dimension (Outdoor, WxHxD)  71.00 cm x 54.00 cm x 22.00 cm

Capacity

• Capacity (Cooling, Btu/hr)  11942 Btu/hr
• Capacity (Cooling, Min - Max, Btu/hr)  3,753 - 13,649 Btu/hr
• Capacity (Cooling, kW)  3.50 kW
• Capacity (Cooling, Min - Max, kW)  1.1 - 4.0 kW

Energy Efficiency

• ISEER (W/W)  4.32 W/W
• EER (Cooling, W/W)  3.24 W/W
• Energy Star Rating (Cooling)  3 Star

Noise Level

• Noise Level (Indoor, High/Low, dBA)  40/21 dBA
• Noise Level (Outdoor, High/Low, dBA)  49 dBA

Electrical Data

• Power Source(Φ/V/Hz)  1 / 230~ / 50
• Power Consumption(Cooling, W)  1080 W
• Operating Current(Cooling, A)  5.1 A

Technical Information

• Piping Length (Max, m)  15 m
• Piping Height (Max, m)  7 m
• SVC Valve (Liquid (ODxL))  6.35
• SVC Valve (Gas (ODxL))  9.52
• Moisture Removal (l/hr)  1.30 l/hr
• Air Circulation (Cooling, ㎥/min)  10.90 ㎥/min
• Refrigerant (Type)  R32
• Refrigerant (Charging, kg)  0.45 kg
• Refrigerant (Charging, tCO2e)  0.3 tCO2e
• Low Ambient (Cooling, ℃)  15~52 ℃
• Outdoor Unit (Compressor Type)  BLDC

Air Flow

• WindFree Cooling  No
• Air Direction Control (Up/Down)  Auto
• Air Direction Control (Left/Right)  Manual
• Air Flow Control Step (Cool/Fan)  5/4

Smart

• Wi-Fi Embedded  No

App Connectivity

• SmartThings App Support  No
