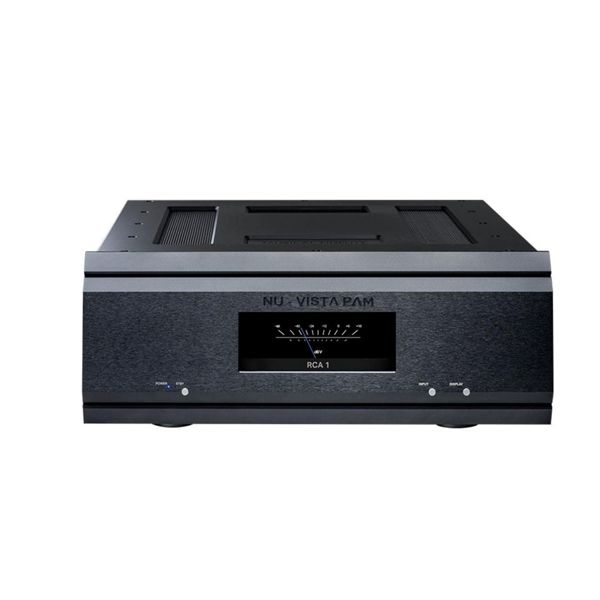

Musical Fidelity Nu-Vista PAM - Power Amplifier
₹3,000,000.00
Availability: In stock
SKU:
NU VISTA PAM
The Nu-Vista PAM is a fully balanced, discrete mono power amplifier with separate power supply unit.
Based on Musical Fidelity excellent Nu-Vista 800 circuit they decided to go all out “fully balanced” on the Nu-Vista range.
The Nu-Vista PAM features the tried and tested Nu-Vista stage featuring 6S51N nuvistors in a discrete class A amplifier buffer.
Hurry Up! Sold: 0/2 products in stock.
Nu-Vista PAM – Specifications
Amplifier
· High output power, greater than 600W into 8 ohms, 1000W into 4 ohms, 1500W
peaks into 2 ohms
· Output Voltage: 69 Volts RMS
· Output Current: 150 Amps peak to peak
· Damping factor: 180
· Output devices: 5+5 pairs per channel
· Gain:16x (23.5 dB)
· THD+N: < 0.003 % typical, 20Hz to 20 kHz
· Signal/ noise ratio: >108dB ‘A’-weighted
· Input impedance: 100 k Ohms
· Input sensitivity for full output: 4.3 Volts RMS
· Frequency response: + 0, –1dB, 5Hz to 50 kHz
In & Output
· 4 fully independent inputs: 2x RCA & 2x XLR
· 2 loopthrough outputs: 1x RCA & 1x XLR
· Speaker outputs: 2 pairs 4mm banana plug/binding posts
· Trigger input and output: 3.5mm mono jack socket
· Trigger level ±5V to ±12V
General Information
· Weight PAM: 27kg net (35kg)
· Weight PAM PSU: 40kg net (50kg)
· Dimensions PAM (WxHxD): 483 x 187,5 x 475 (494 with connectors)
· Dimensions PAM PSU (WxHxD): 483 x 187,5 x 475 (478 with connectors)
· Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz
(alternative)
· Consumption <0.5W in standby mode; 130W on
and idle; 2150W maximum
