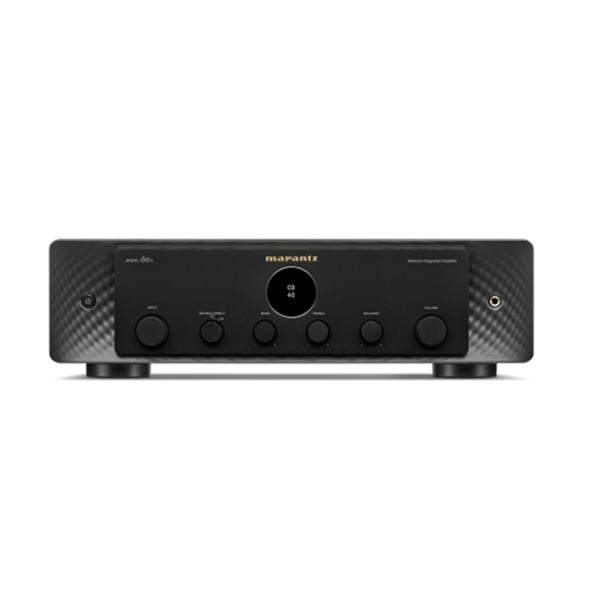

MARANTZ MODEL 60N INTEGRATED AMPLIFIER

Specifications

• Channels -2

• PSU Transformer -Toroidal

• Speaker A / B -No

• Speaker Terminals -Marantz SPKT-1+

• Number of Terminals -2

• Power Output (8 / 4 Ohm RMS) -60 W / 80 W

• Topology -Class A/B

• Frequency Response -5 Hz-100 kHz

• Total Harmonic Distortion -0.02 %

• Damping Factor -100<

• Input Sensitivity: MM -1.9 mV / 47 kOhm

• Signal to Noise Ratio: MM/MC -7 dB / -

• Input Sensitivity: High Level -190 mV / 20 kOhm

• Signal to Noise Ratio: High Level -113dB

• Treble Control -± 10 dB at 15kHz

• Bass Control -± 10 dB at 50Hz

• Remote Control -RC006PM

• System Remote Function -Yes

• Maximum Dimensions (W x D x H) mm -442 x 431 x 129

• Carton Maximum Dimensions (W x D x H) mm -527 x 517 x 255

• Carton Weight (inc. product) in kg -15.5
