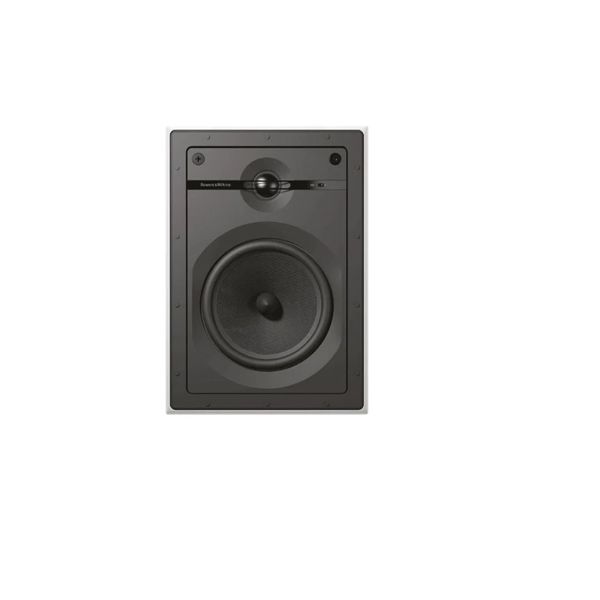

Bowers & Wilkins CWM 664 In-Wall Speaker

ABOUT THIS ITEM

• Driver Configuration: Features a 2-way in-wall system design.

• Driver Material: Utilizes a ø25mm (1in) Nautilus™ tube loaded aluminum dome tweeter for clear high-frequency reproduction and a ø150mm (6in) black glassfiber cone bass/midrange driver for powerful midrange and bass.

• Frequency Range: Offers a wide frequency range from 45Hz to 35kHz (-6dB), ensuring full spectrum sound reproduction.

• Sensitivity SPL: Boasts a sensitivity of 87.5dB SPL (2.83V, 1m), delivering efficient sound output with minimal power input.

• Impedance Rating: Nominal impedance of 8 Ohms (minimum 4.5 Ohms), ensuring compatibility with most amplifiers.

• Maximum Amp Power: Supports amplifier power ranging from 25 to 130 watts, providing flexibility in system setup.

• Pre-mount Kit and Back Box: Includes PMK W6 pre-mount kit and BB 6W back box for easy and secure installation.

• Frame Dimensions: Frame height of 12.4", frame width of 8.7", and shallow depth of 3.7" behind the surface, facilitating seamless integration into walls.

• Cut-out Dimensions: Cut-out height of 11" and cut-out width of 7.2", ensuring proper fit during installation.

• Weight: Unit weighs 10 lbs, making it lightweight and easy to handle during installation; shipping weight is 12 lbs.
