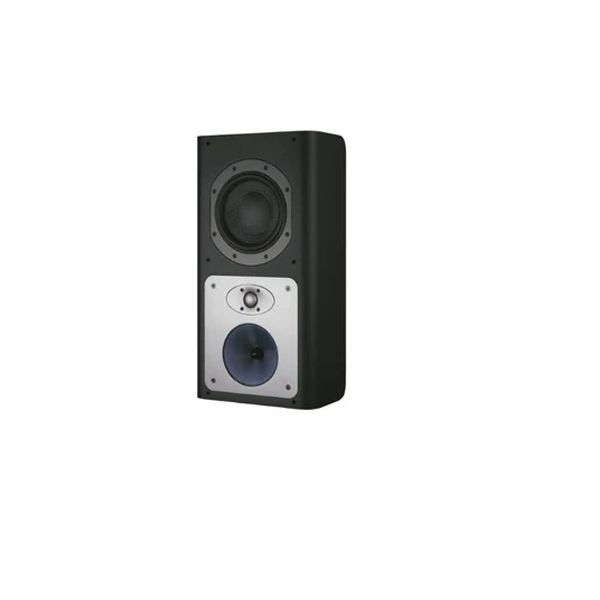

Bowers & Wilkins CT8.4 LCRS Channel Speaker
HIGHLIGHTS
3-way vented-box system
Nautilus tube loaded tweeter
1x1.2" tube loaded aluminium dome high-frequency
1x6" woven Aramid Fibre FSTTM mid-range cone bass
Freq Res - 49Hz - 24kHz (±3dB)
Sensitivity - 88dB
Hurry Up! Sold: 0/5 products in stock.
ABOUT THIS ITEM
-
Driver Configuration: Features a 1x ø32mm tube-loaded aluminum dome high-frequency tweeter, 1x ø150mm woven Aramid Fibre FST mid-range driver, and 1x 200mm carbon fiber/Rohacell® sandwich cone bass driver.
-
Frequency Range: Offers a broad frequency range from 49Hz to 24kHz with a -6dB cutoff at 39Hz and 40kHz.
-
Dispersion: Provides consistent sound dispersion within 2dB of reference response horizontally over a 60º arc and vertically over a 10º arc.
-
Sensitivity: Offers a sensitivity of 88dB SPL (Sound Pressure Level) at 2.83V, 1m, ensuring efficient power usage.
-
Harmonic Distortion: Maintains low harmonic distortion with 2nd and 3rd harmonics below 1% from 80Hz to 20kHz and below 0.5% from 200Hz to 20kHz.
-
Nominal Impedance: Rated at 8Ω with a minimum of 3Ω, ensuring compatibility with a wide range of amplifiers.
-
Crossover Frequencies: Utilizes crossover frequencies of 380Hz and 4kHz for seamless integration of drivers.
-
Recommended Amplifier Power: Compatible with amplifiers delivering 50W to 200W into 8Ω on unclipped programs.
-
Max Recommended Cable Impedance: Supports cables with a maximum impedance of 0.1Ω for optimal performance.
